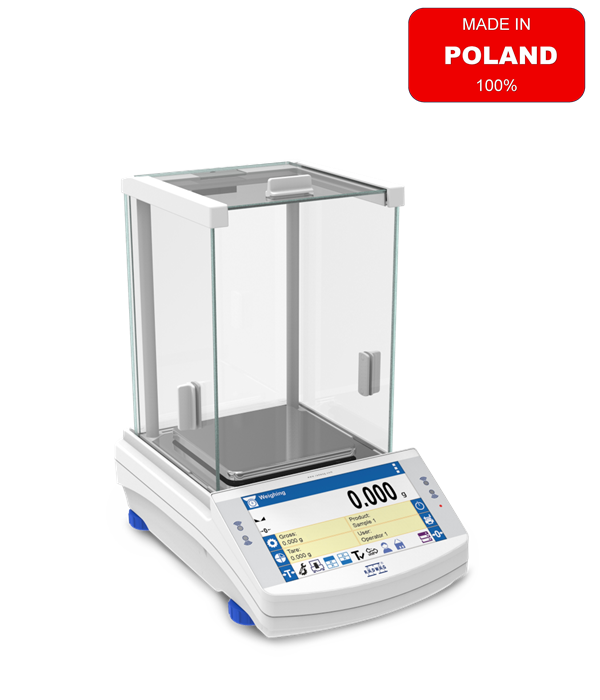

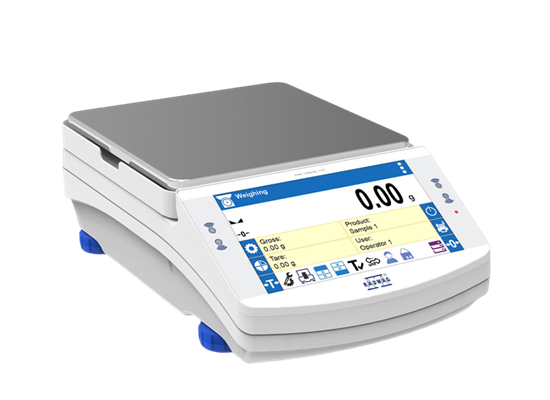

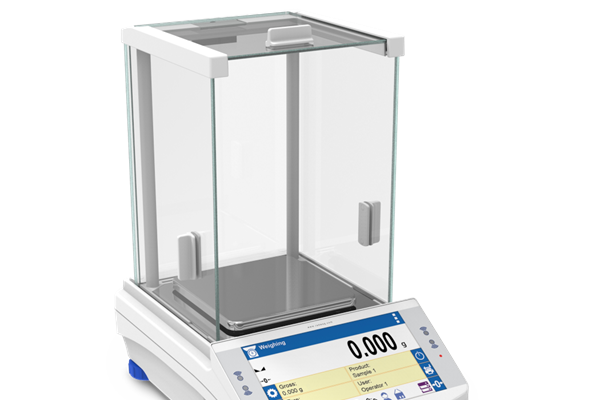

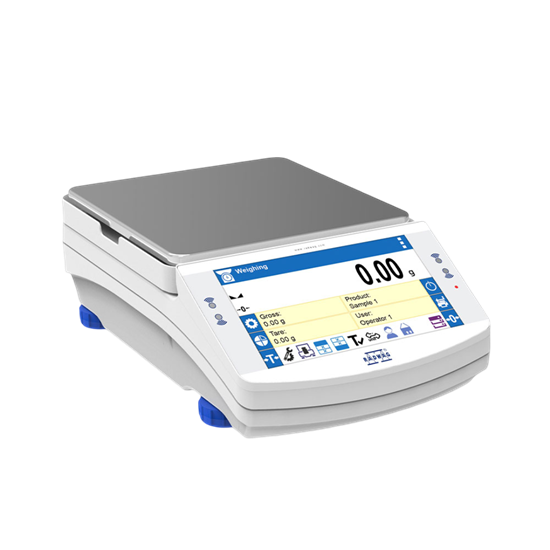

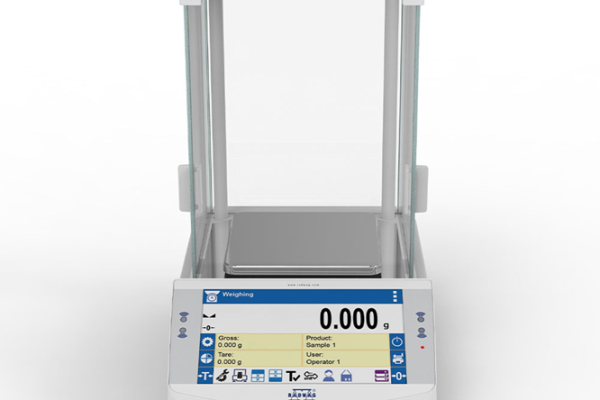

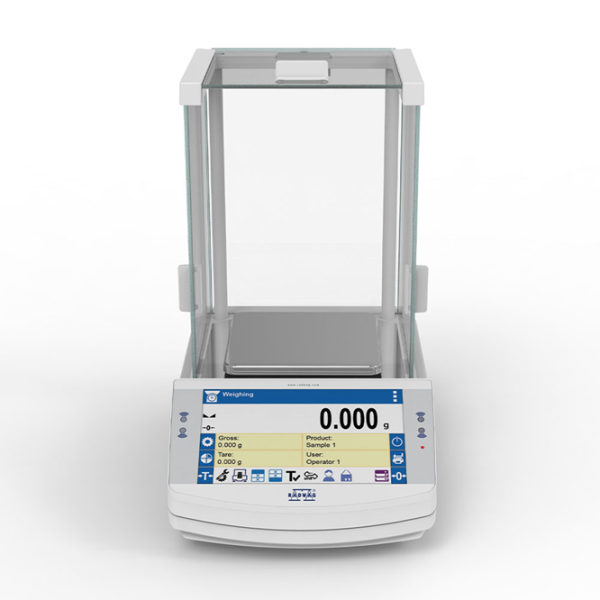

RADWAG PS.X7 Precision Series

RADWAG PS.X7 Series

PS X7 Precision Balances are distinguished by their simplicity of use, clarity of menu and intuitive layout of information on the display. The latest generation 7’’ compact display allows comfortable operation even with lab gloves. The PS X7 Precision Balances guarantee intuitive communication thanks to a wide selection of widgets that can be freely configured according to user needs.

PS X7 Precision Balances have a readability [d] of 1 to 10 mg, and a maximum capacity [Max] of 200 to 10,100 g; both of these parameters vary depending on the model. An advantage of this series balances is internal (automatic) adjustment, which relieves the user from having to carry out this complicated and precision-demanding procedure himself.

The PS X7 Precision balances are equipped with two infrared sensors, which allow for non-contact operation. Built-in IR sensors allow numerous operations (e.g. tarring, transmitting the result to a printer or selecting successive steps of a particular process, etc.) to be performed handsfree, by simply moving a hand across the sensor.

In PS X7.M Precision Balances, the information system is based on 9 databases which allow several users to work with database storing several products. The registered weighing results can be subject to further analysis.

The data is registered in 9 databases:

Products (5 000 products)
Users (100 users)
Packaging (100 packaging types)
Customers (1 000 customers)
Formulations (100 formulations)
Formulations reports (500 reports)
Ambient Conditions (10 000 records)
Weighings (50 000 records)
ALIBI memory (512 000 records)

PS X7.M Precision Balances feature ALIBI memory, which guarantees safety as it automatically records measurements, and allows data prereview, copying and archiving. The ALIBI memory allows to record up to 512,000 weighment records.

Model	PS 210.X7	PS 360.X7	PS 600.X7	PS 750.X7	PS 1000.X7	PS 200/2000.X7	PS 2100.X7.M (MONOBLOCK)	PS 3000.X7	PS 3500.X7.M (MONOBLOCK)	PS 4500.X7.M (MONOBLOCK)	PS 6100.X7.M (MONOBLOCK)	PS 8100.X7.M (MONOBLOCK)	PS 10100.X7.M (MONOBLOCK)
Capacity (g)	210g	360g	600g	750g	1000g	200/2000g	2100g	3000g	3500	4500g	6100g	8100g	10100g
Readability (d)	0.001g	0.001/0.01g	0.01g	0.001g	0.01g
Minimum Load	0.02g	0.5g	-----	0.5g
Linearity (±)	0.003g	0.002 / 0.02g	0.02g	0.006g	0.02g
Stabilization Time	2s	2 / 1.5s	1.5s	3s	1.5s
Display	7″ Graphic Colour Touchscreen
Calibration Adjustment	Internal (Automatic)
Weighing Pan (mm)	128 x 128mm	195 x 195mm	128 x 128mm	195 x 195mm
Touch Free Operation	2 IR Sensors (Left and Right)
Interface	2RS232, USB-A, USB-B, 1Ethernet, Wi-Fi
Peripheral	Computer, Printer, Barcode Scanner, External Display, External Buttons
Operating Temperature	+10 to 40°C
Power Supply	100-240VAC AC/DC Adaptor 12V/1.2A

Model

PS 210.X7

PS 360.X7

PS 600.X7

PS 750.X7

PS 1000.X7

PS 200/2000.X7

PS 2100.X7.M (MONOBLOCK)

PS 3000.X7

PS 3500.X7.M (MONOBLOCK)

PS 4500.X7.M (MONOBLOCK)

PS 6100.X7.M (MONOBLOCK)
