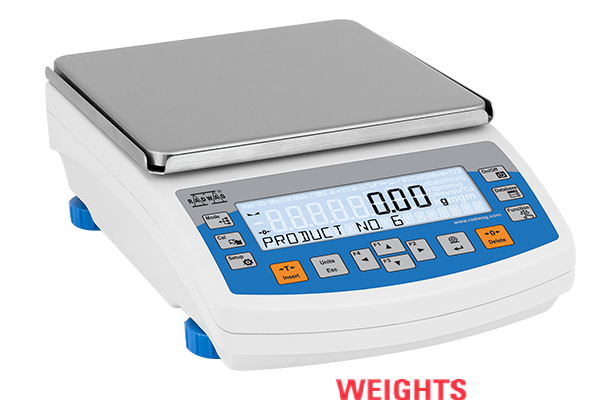

RADWAG PS.R2 Precision Series

RADWAG PS.R2 Series

PS.R2 series represent a new standard of precision balances. They feature a new, readable LCD display which allows a clearer presentation of the weighing result. Besides, the display has a new text information line allowing to show additional messages and data, e.g. product name or tare value.

The information system is based on 5 databases, which allows for several users to work with several products databases, and the registered weighing results can be subject to further analysis.

The data is registered in 5 databases:

users (up to 10 users),
products (up to 1000 products),
weighments (up to 5000 weighments),
tares (up to 100 tares),
ALIBI memory (up to 100 000 weighments).

There are two directions data exchange within the system thanks to a quick USB interface. New balances allow to import and export databases using USB pen drives.

Direct access to functions and databases are possible from the level of keyboard.

Database – a direct access to database
Function – a direct access to the basic functions
F1 to F4 – programmable function and navigation keys on the menu

Alibi memory provides security when it comes to storing weighing records thus an unauthorised access is prevented. For stored weighings you can generate weighing reports, formulation reports and reports on performed control processes. Single weighing is stored in the ALIBI memory as long as it is specified by a Weighing Storage Period (days) parameter.

Model	PS 200/2000.R2	PS 210.R2	PS 360.R2	PS 600.R2	PS 750.R2	PS 1000.R2	PS 0.6.R2	PS 2100.R2.M	PS 3500.R2.M	PS 4500.R2.M	PS 6100.R2.M	PS 8100.R2.M	PS 10100.R2.M
Capacity (g)	200/2000	210	360	600	750	1000	600	2100	3500	4500	6100	8100	10100
Readability (d)	0.001/0.01g	0.001g	0.01g	0.01
Minimum Load (g)	0.02g	0.5g
Verification Scale Interval (e)	0.01/0.1g	0.01g	0.1g	-
Linearity (±g)	0.002/0.02g	0.002g	0.003g	0.02g	0.03g
Stabilization Time	2s/1.5s	2s	1.5s
Display	LCD with Backlight
Calibration Adjustment	Internal Calibration
Weighing Pan (mm)	128 x 128mm	195 x 195mm
Interface	Standard - (2 * RS-232, 1 * USB-A & 1 * USB-B) Optional - Wi-Fi b/g/n

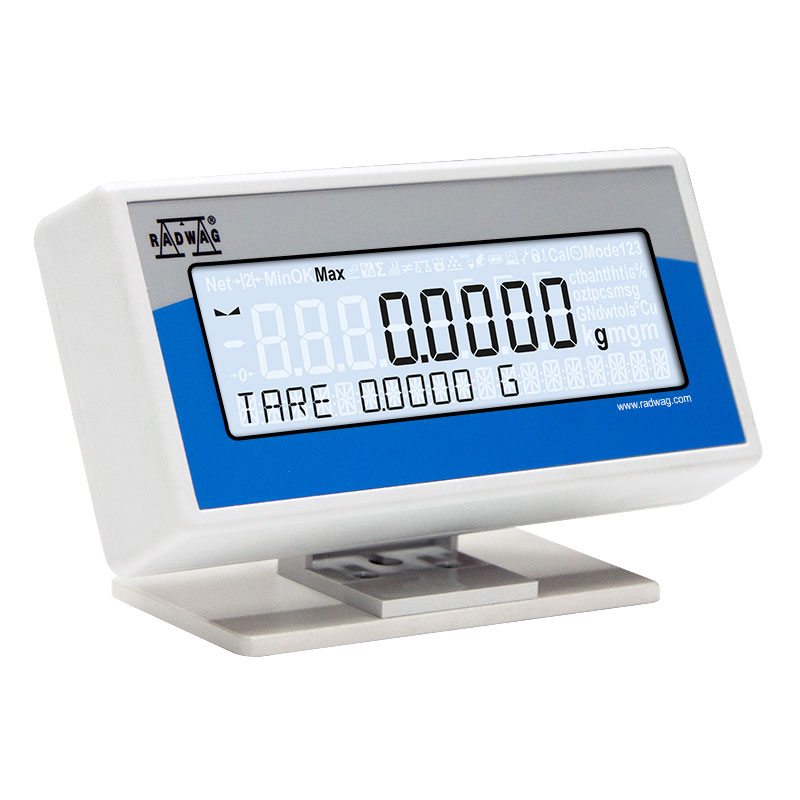

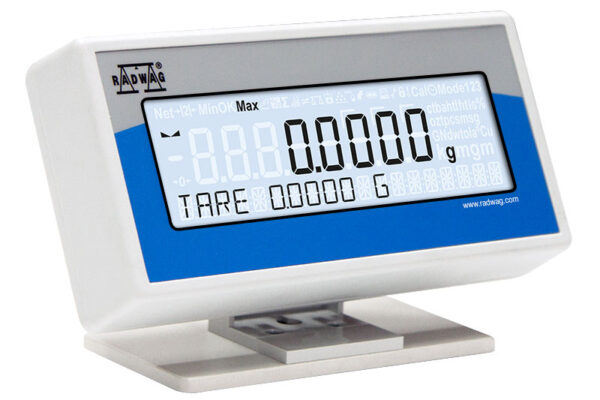

Peripheral	Computer, Printer, Barcode Scanner, External Display, External Buttons
Operating Temperature	+10 to 40°C
Power Supply	100-240VAC AC/DC Adaptor 12V/1A

Model

PS 200/2000.R2

PS 210.R2

PS 360.R2

PS 600.R2

PS 750.R2

PS 1000.R2

PS 0.6.R2

PS 2100.R2.M

PS 3500.R2.M

PS 4500.R2.M

PS 6100.R2.M
