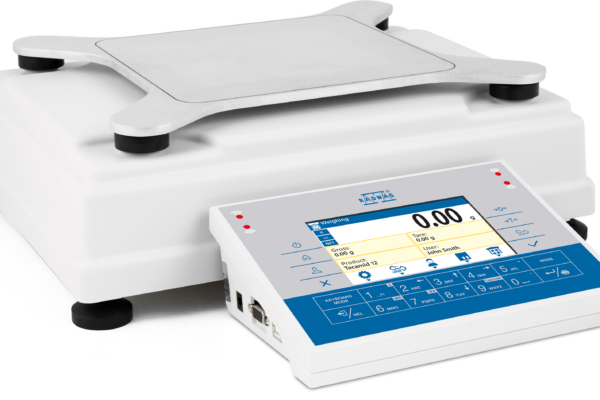

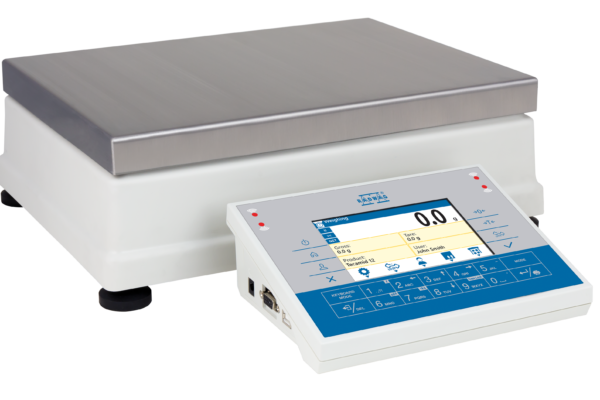

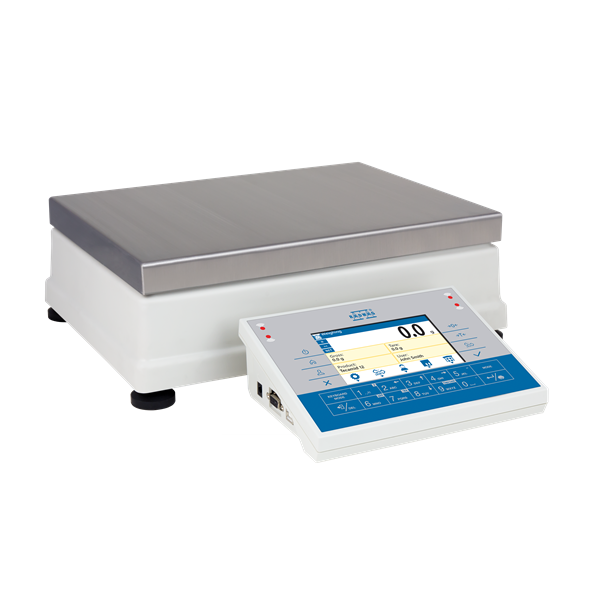

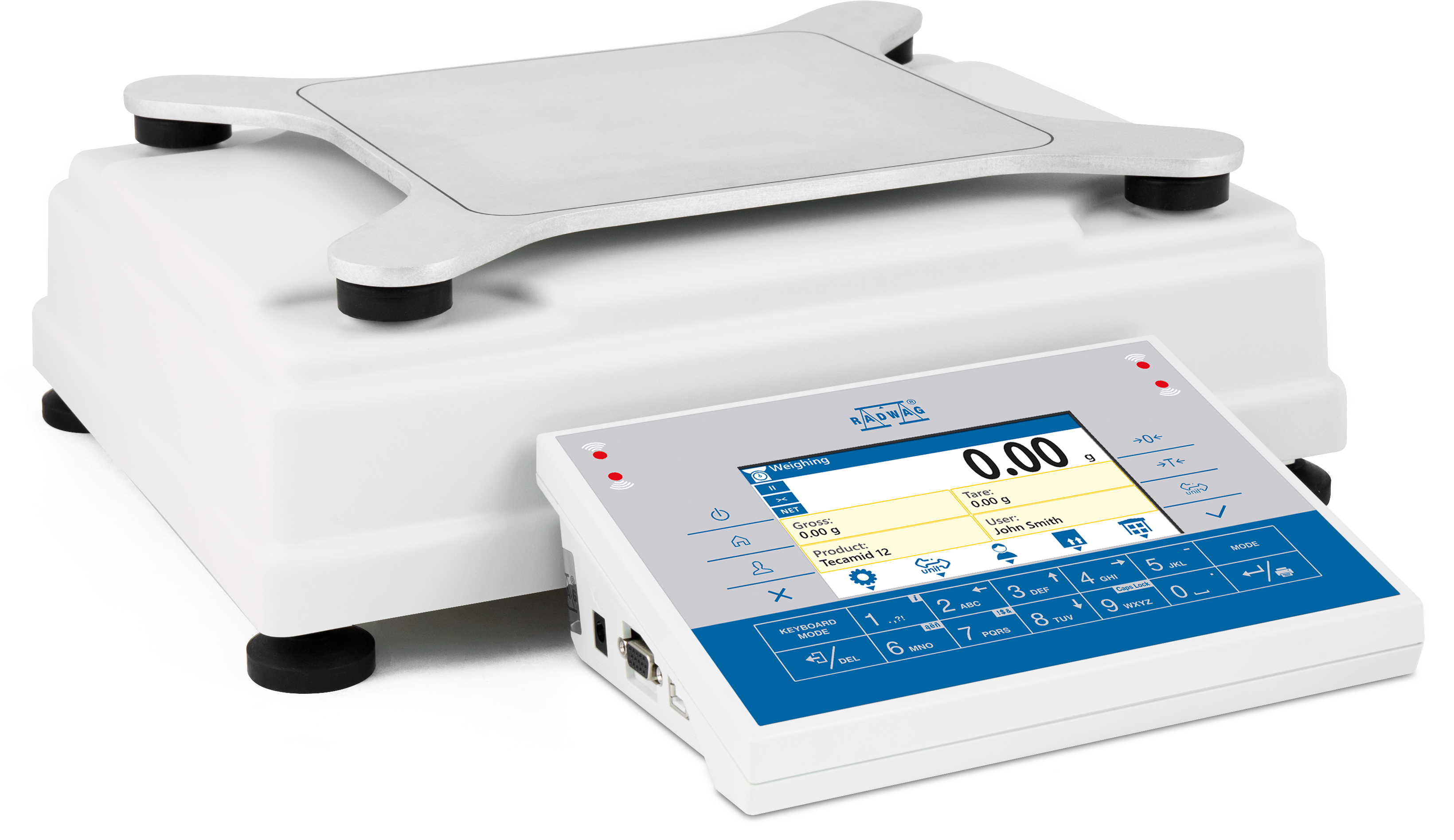

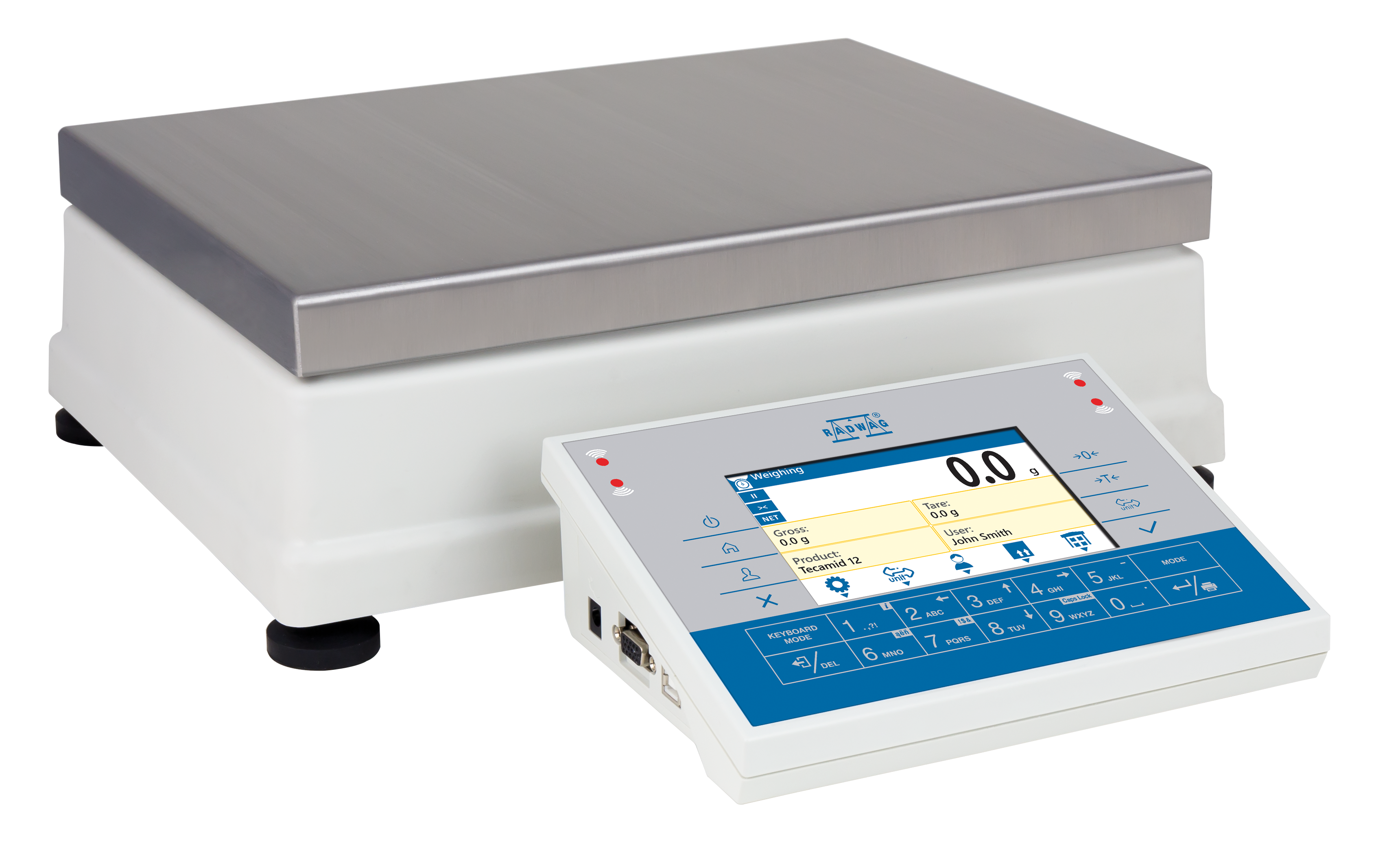

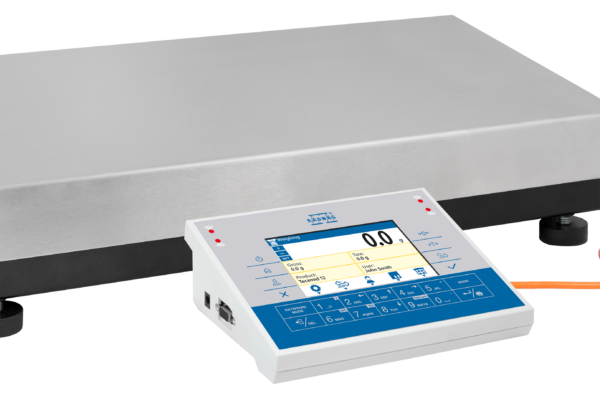

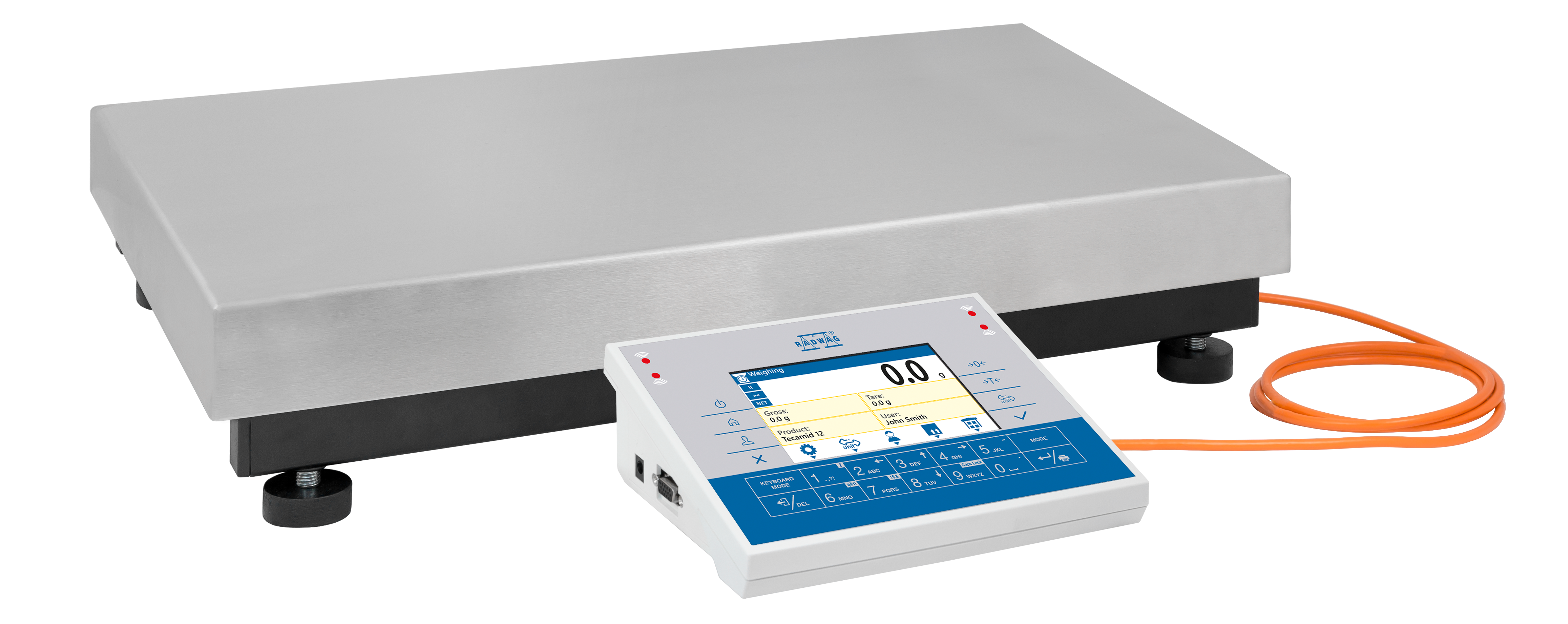

RADWAG C32.PM Hi-Cap Precision Series

RADWAG CM.PM Hi-Cap Series

C32.PM series balances have been designed to enable precise determination of mass in laboratory. Dosing, formulation-making, and parts counting are just some of the possible applications of these multi-purpose devices. PM balances not only provide an accurate reading and quick measurement, but they are also versatile, allowing them to be used in a variety of industrial sectors.

Laboratory Precision Under Industrial Conditions

The ability to weigh loads up to 120 kg on a large weighing pan with high accuracy and good repeatability,
minimum eccentricity error over the entire range,
quick and stable measurement (achievable within 1 second),
parameter stability over time and during transport,
weighing pan dimensions adapted to the accuracy of the balance

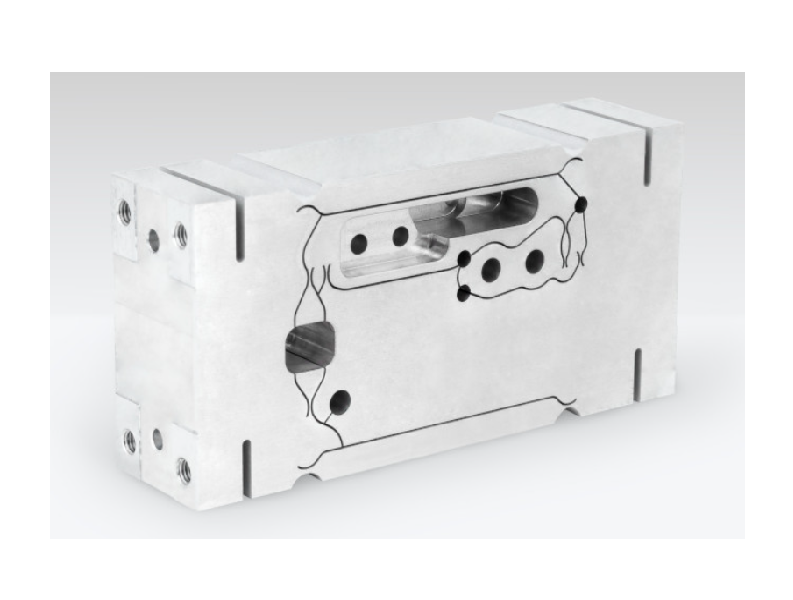

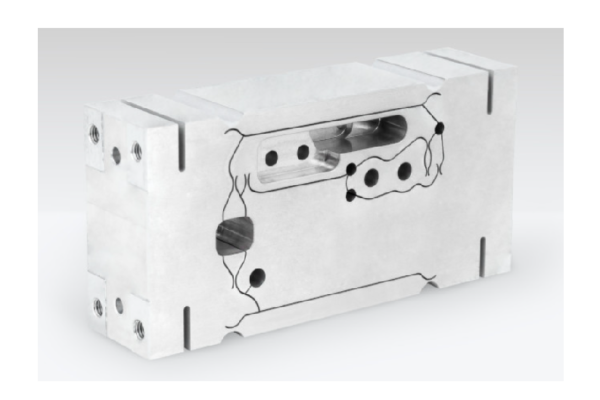

are the distinguishing features of RADWAG PM balances. All of this is possible thanks to the use of a cutting-edge measuring system based on RADWAG’s enhanced MONOBLOCK^® technology.

The change in the design of the has made it possible to work with a readability of 0.01 g at a maximum capacity of 20 kg and 0.2 g at a maximum capacity of 120 kg, with a repeatability of 0.01 g, and resistance to changes in ambient conditions.

CM32.PM balances also include:

robust design based on a larger and taller Monoblock,
built-in 4-point overload protection system,
IP 43 ingress protection,
internal adjustment,
5″ colour display,
easy start-up, intuitive operation, and ergonomics.
optional battery enables the PUE C32 terminal to operate even when there is either no or unstable power supply.

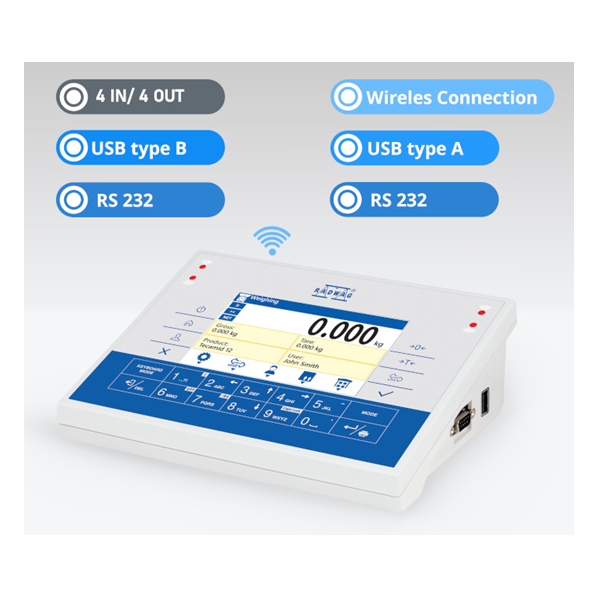

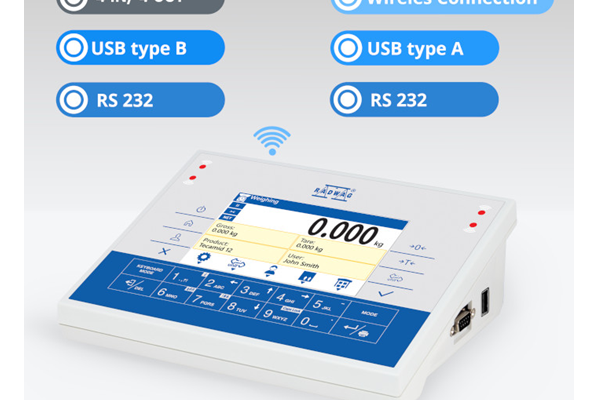

RS 322, USB-A, USB-B, 4×IN, 4×OUT, WIFi and Ethernet interfaces which facilitate both co-operation with peripherals such as printer or computer and data exchange using USB drives.

Model	CM32.10.PM	CM32.15.PM	CM32.25.PM	CM32.35.PM	CM32.60.PM	CM32.60.PM.0.5	CM32.60.PM.1	CM32.120.PM
Max Capacity	10kg	15kg	25kg	35kg	60kg	60kg	60kg	120kg
Readability (d)	0.01g	0.01g	0.1g	0.1g	0.1g	0.5g	1g	0.2g
Linearity	±0.03g		±0.3g			±1.5g	±3g	±0.6g
Minimum Load	0.5g	0.5g	5g	5g	5g	0.5g	1g	---
Verification Scale Interval (e)	0.1g	---	1g	1g	1g	---	---	---
OIML Class	II	---	II	II	II	---	---	---
Stabilization Time	3s
Display	PUE C32 Indicator - 5" Colour
Calibration Adjustment	External & Internal Calibration
Weighing Pan (mm)	200mm x 185mm		347mm x 259mm		500mm x 400mm
Interface	Standard - (2 * RS-232, 1 * USB-A & 1 * USB-B), Ethernet 10/100 Mbit, Wi-Fi b/g/n
Peripheral	Computer, Printer, Barcode Scanner, External Display, External Buttons
Operating Temperature	+10 to 40°C
Power Supply	100-240VAC AC/DC Adaptor 12-16V
