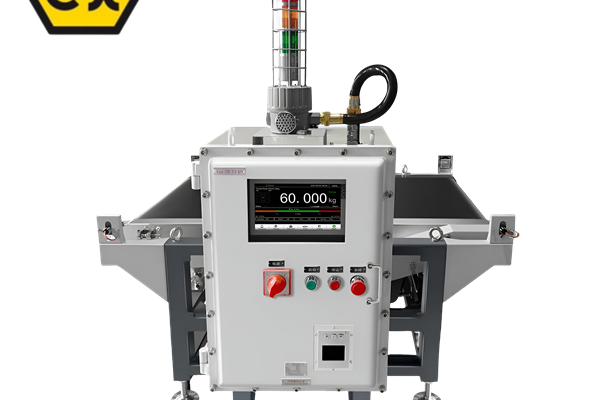

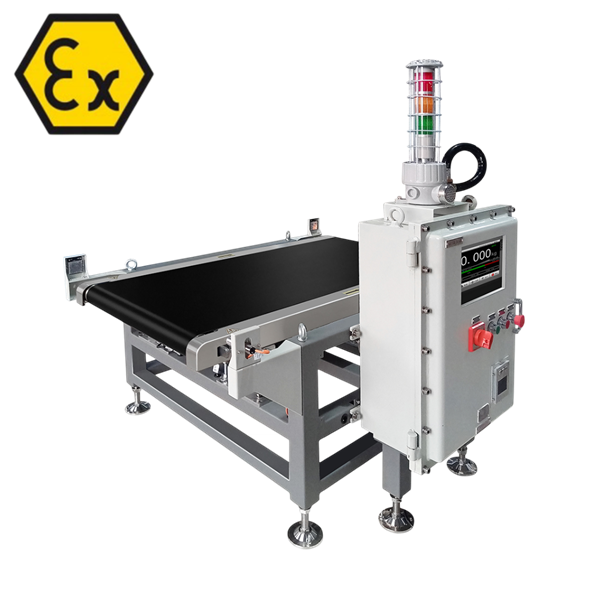

The CW-60K-Ex (Explosion Proof) check weigher is designed for automatic weight checking in industrial fields with a risk of explosion. Its module design with a full touch screen makes it easy to install and operate.
CE approved.
Anti-Explosion
- Anti-explosion control box to meet the requirements of Ex application.
- Ex components selectable.
User Friendly
- High visibility 10inch TFT screen with graphic user interface
- Tower light showing the weight results intuitively
Flexible Product Adjustment
- Bag or case weighing up to 60kg
- Easy integration in almost every production line
- Anti-vibration legs with height adjustment
- Automatic measuring time adjustment
- RS485 and Modbus TCP/IP connection
Effective Product with High Accuracy
- Excellent accuracy in flexible packaging
- Making product identification fast and simple
- 1,000,000pcs weight value for production statistics storage
- Continuously variable belt speed control
| Model | CW-60K-Ex Horizontal | CW-60K-Ex Vertical |
| Max Capacity | 5 ~ 60kg | 5 ~ 60kg |
| Accuracy (Best) | ±10g | ±10g |
| Display | 10-inch color Touch Screen (Ex-Proof Cabinet) | 10-inch color Touch Screen (Ex-Proof Cabinet) |
| Loadcell | Ex ia I Ma; Exia I Mb; Exia II C T4/T6 Ga; Exia IIC T4/T6 Gb; Ex iaD 20 T125; Ex iaD21 T125; Ex nA IICT4/T6Gc; Ex to A21 IP67 T125 °C | Ex-Proof (Ex ia I Ma; Exia I Mb; Exia II C T4/T6 Ga; Exia IIC T4/T6 Gb; Ex iaD 20 T125; Ex iaD21 T125; Ex nA IICT4/T6Gc; Ex to A21 IP67 T125 °C |
| Weighing Speed (Max) | ≤60pcs/min (Belt length: 1000mm), ≤50pcs/min (Beltlength: 1200mm) | ≤50pcs/min (Belt length: 800mm) |
| Belt Speed | 10~60m / min | 10~40m/min |

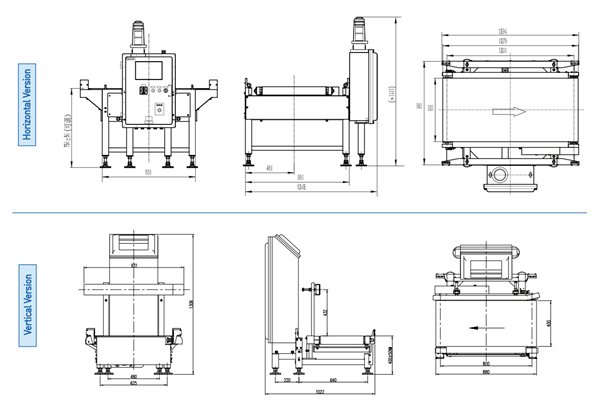

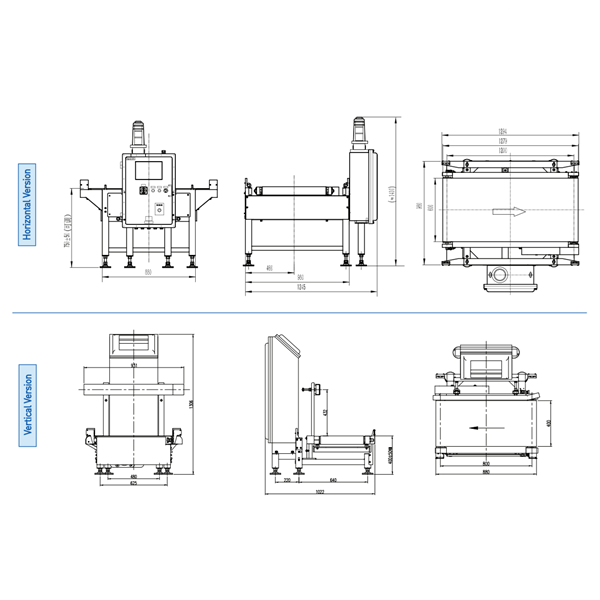

| Belt Size | 1200mm (L)*600mm (W)/1000mm (L)*600mm(W) | 800mm(L)*400mm(W) |
| Weighing Platform Height | Configurable from 400 - 750mm ±50mm | Configurable from 400 - 750mm ±50mm |
| Alarm light | 3-Color Signal Light ( Red, Yellow, Green), Optional buzzer | 3-Color Signal Light ( Red, Yellow, Green), Optional buzzer |
| Power Supply | AC380V±10%, 50/60Hz, 1KW | AC380V±10%, 50/60Hz, 1KW |
| Operating Temperature | 0~40°C | 0~45°C |
